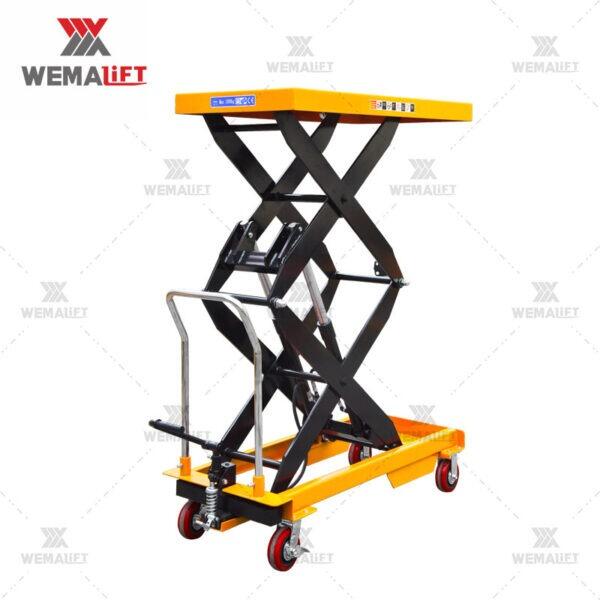

Wemalift PTS500 High Lift Double Scissor Hydraulic lifting table


Wemalift PTS500 High Lift Double Scissor Hydraulic lifting table

Lifting Height 360 -1500 MM

Load Capacity 500KG

Table Size 905*500 MM

Foot pedal to lift up

Foot operated table descent control

Double Pump, heavy duty design

CE Approved

1 Year Warranty


£491.67+Vat


£0.00
£590.00
Earn0
reward points


  • Overview

    The PTS mobile lifting table with mechanical lifting can be used in warehouses, workshops, garages, service centres, etc. The table has a sturdy frame and a double scissor lifting system with a hydraulic pump operated by a foot pedal. Approx 73 pumps (15.6mm per pump) to get to 1500 mm platform height.

    The silent polyurethane wheels and rollers are highly wear resistant and do not leave marks on the floor surface.

    The presence of brakes on the swivel wheels ensures safe operation.

    The PTS500 has a load capacity of 500 kg and a lifting height 360-1500 mm, platform size  is 905*500 mm.

  • Specifications
    Model
    PTS500
    Load Capacity kg500
    Min. Height mm360
    Max. Height mm1500
    Table Dimension mm905*500*50
    Dia. of the wheel mmΦ125
    Net Weight kg107
    Packing Sizemm1070*520*360
